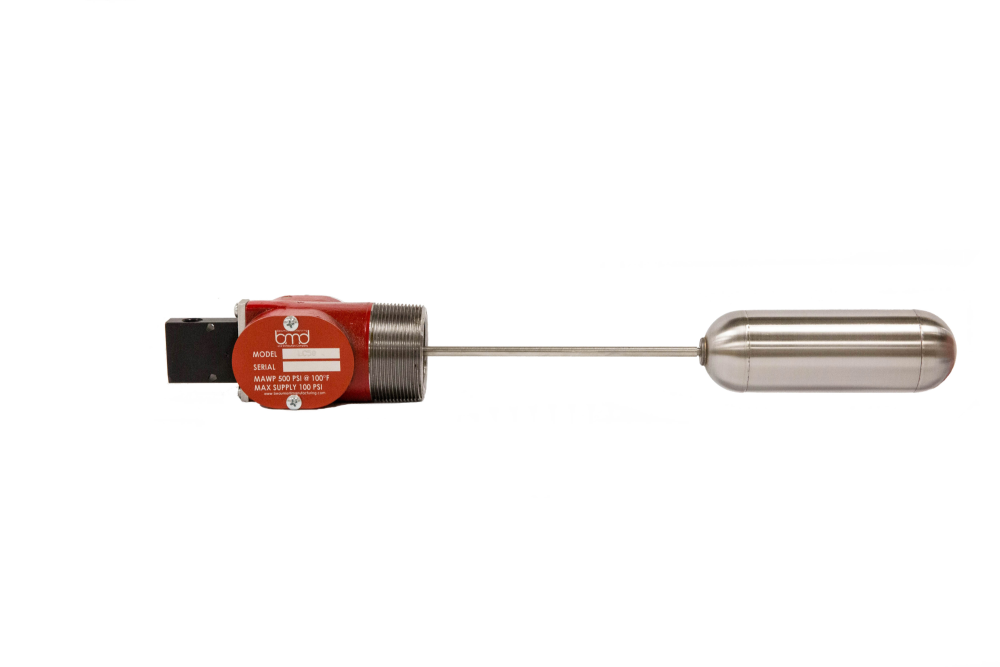

LC50

Float Operated Snap Liquid Level Control

BMD’s LC50 is a low/medium pressure, float operated, snap liquid level control.

Power Features

  • Float-operated liquid level control

  • Maximum working pressure: 500 PSI

  • Ideal for low to medium pressure applications

  • Adjustable range for use as a high/low alarm or traditional level controller

  • Replaceable 3-way block and bleed pilot with soft seat for bubble-tight shutoff

  • Available connection sizes:

    • 2” threaded

    • 4” or 5” union

    • 4” grooved

  • Two standard stainless steel float sizes (custom sizes and arm lengths available upon request)

  • NACE option available for sour service

  • Electric option available

Specifications

  • Sizes:
    • Threaded: 2”
    • Union: 4” and 5”
    • Grooved: 4”
  • Pressure Rating: 500 psi
  • Temperature Range: -20° F to 400° F (-29° C to 204° C)
  • Pilot Connections: 1/4” NPT
  • Max Pilot Pressure: 250 psi
  • Materials:
    • Body: WCB Steel
    • Float: Stainless Steel (2” X 6” Standard, 3 1/2” X 6” Optional)
    • Arm: Stainless Steel (10” Standard, 6” Optional)
    • Shaft: Stainless Steel
    • Bushings: Brass, Stainless Steel (Optional)
    • Seals: Buna, Viton® (Optional)
    • Pilot Body: Aluminum
    • Electric Specifications: Current Rating 15A, 480 VAC, 250 VDC
